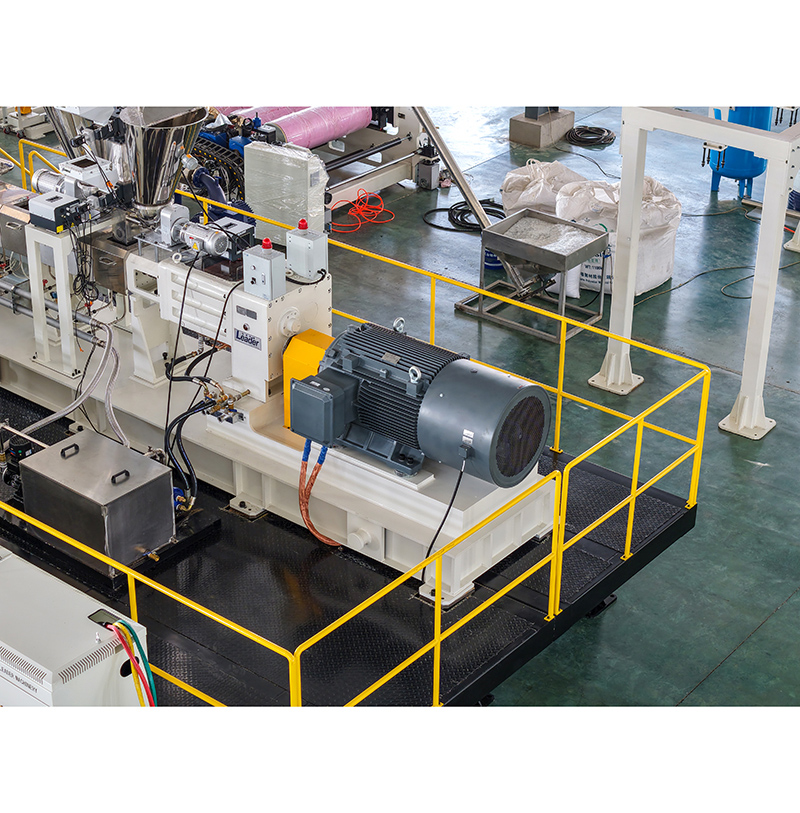

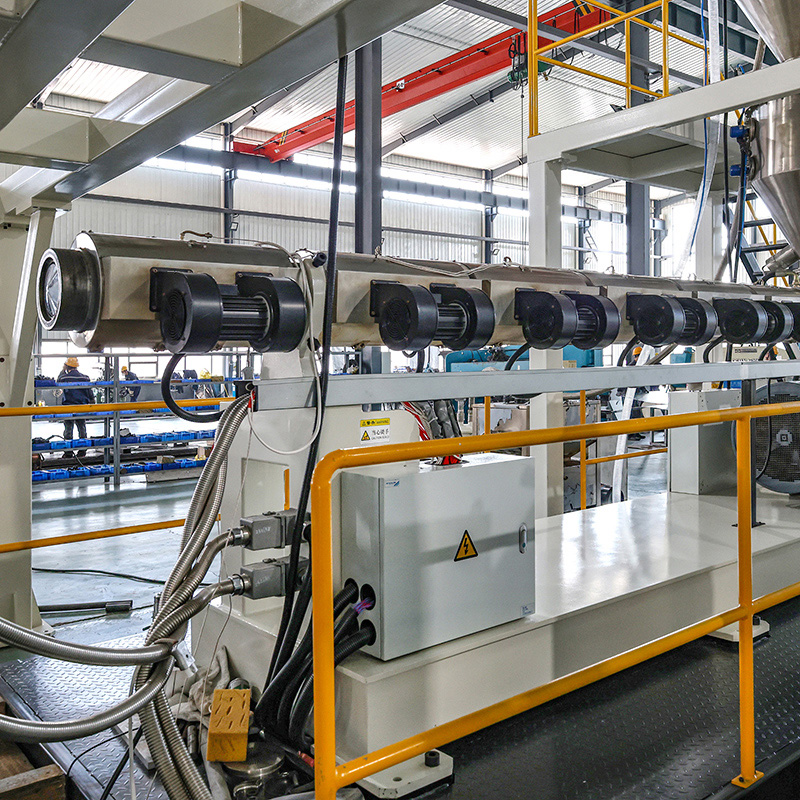

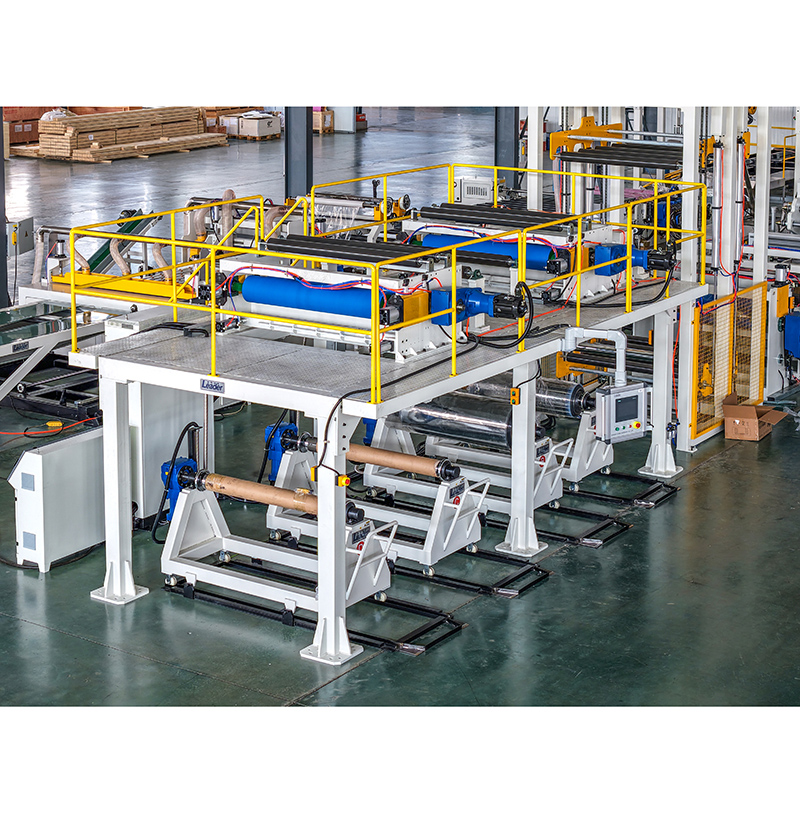

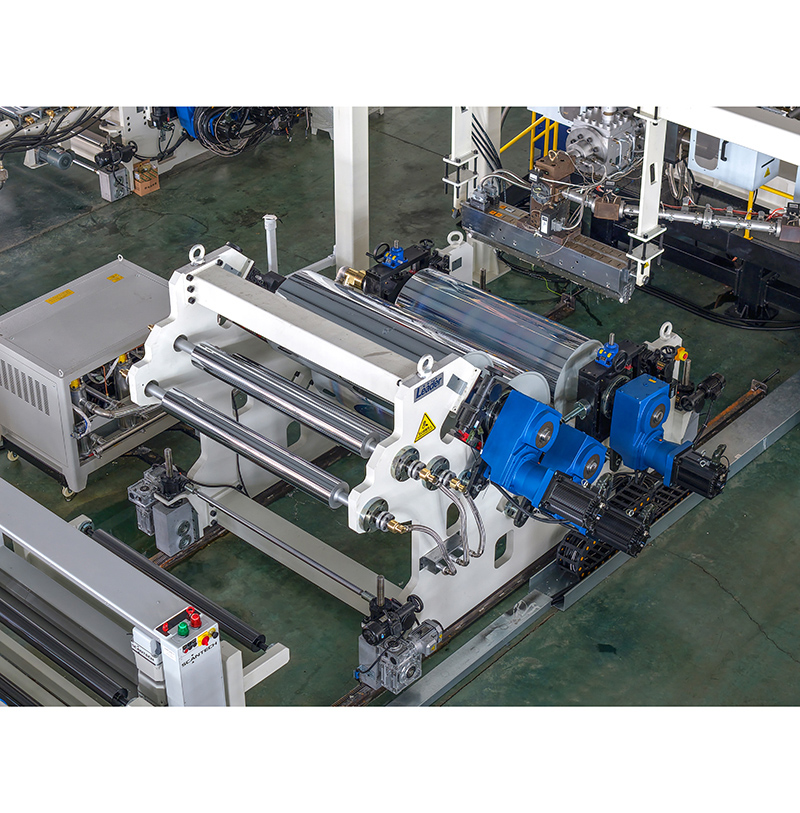

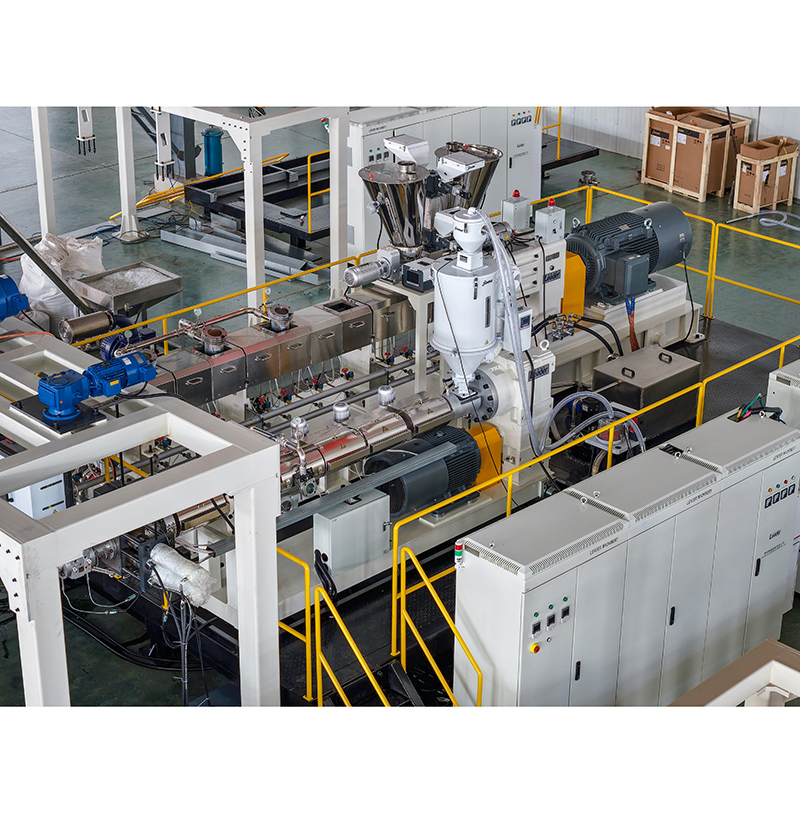

PVC WPC Foam Board / Co-Extrusion Foam Board Extrusion Line
PVC foam board also named Snow board and Andy board, the chemical component is polyvinyl chloride, also can be named foam polyvinyl chloride board.
PVC Semi-Skinning foam manufacturing technique is made according to the features of  free foamed  board extrusion technique and skinning foam board forming  technology , this equipment have advanced structure,simple formulation,easy operation etc. features.

The feature of  WPVC foam board

1.Waterproof,anti-flame,anti-acid& anti-moth,light weight,heat preservation,sound insulation,shock absorption.

2.The process same with wood, but manufacturing performance is much better than wood.
+86-532-86620998
13806392693(Mobile/Whatsapp/Wechat/)
Main Technical Specification

Model

Extruder model

Products width (mm)

Products thickness (mm)

Main motor power (kw)

Max capacity (kg/h)

PC/WPC
Foam

LMSB80/156

1220

5-20

75

400

LMSB92/188

1560

8-18

132

550

LMSB92/188

2050

8-15

132

550

Co-Extrusion Foam

LMSB80/156+65/132

1220

5-20

75+37

500
